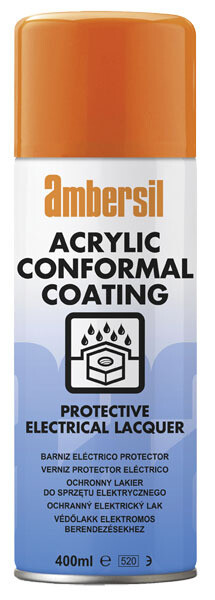

Ambersil 30235-AA Acrylic Conformal Coating 400ml

Apply to populated PCB’s and electronics to seal out moisture and dust for long-term protection.

• Transparent insulating conformal coating

• Wets out to form a homogenous film with uniform thickness

• Cured lacquer is flexible, will not crack or chip and can be soldered through

•

• Apply to populated PCB’s and electronics to seal out moisture and dust for long-term protection. Transparent insulating conformal coating Wets out to form a homogenous film with uniform thickness Cured lacquer is flexible, will not crack or chip and can be soldered through Applications

Specially developed to protect printed circuit boards. It prevents

electrical leakages and short circuits.

As a low viscosity fixing and insulating lacquer, Acrylic Conformal

Coating can also be used as extra/after insulation of coils and

transformers and reduces operational noise.

Directions For Use

• Pre-cleaning of PCB’s is recommended (use Ambersil PCB

Cleaner) to remove greases, dirt and flux residues (Ambersil

Flux Remover).

• Contains flammable solvents and hence when working with the

product, make sure there is good ventilation in the workplace.

Remove all possible ignition sources.

• Spray from a distance of 20 to 30 cm on the dry and degreased

surface.

• When finished spraying, clear the aerosol valve by turning the

can upside down and pressing the button until only propellant

escapes.

• Printed circuit board materials and electronic components

generally have a good compatibility with this coating. In case

of plastic surfaces (e.g. housings) a compatibility test is always

recommend. It is advisable to test its suitability for plastics

susceptible to stress cracking (e.g. polycarbonate).

• For automatic application, or if a lower viscosity is required,

Ambersil Acrylic Conformal Coating Thinners can be added.

• Ambersil Acrylic Conformal Coating Thinners also available -

standard hydrocarbon solvents for use with Ambersil Acrylic

Conformal Coating. Thinners reduce viscosity and allow for

an even and thorough application. Dilute as required to attain

required viscosity. Particularly useful in automatic applications.
